The OS2 SHEVTEC controller is a certified, flexible control panel that can operate either as a stand-alone, networked or multi-zoned system for both environmental and smoke ventilation applications.
It can integrate into a Building Management System via the receipt of digital (volt free), analogue (0-10v) or BMS protocol, or operate as a stand-alone system with switches and sensors cabled directly to it. Monitored battery back up provision offers environmental operation during mains power failure conditions in addition to fully compliant smoke ventilation operation via it’s compliance to EN12101-10.

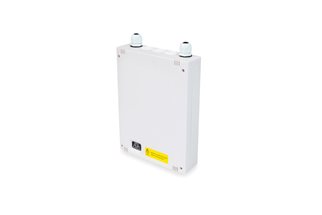

The NV PSU controller is a cost effective, certified solution for environmental control applications. It can integrate into a Building management System via the receipt of either digital (volt free) or analogue (0-10v) signals to provide incremental operation of window actuators, plus can operate as a stand-alone system with switches and sensors cabled directly to it.
Co2 and temperature controlled systems can be provided with a combination of the NV PSU controller and SE IAQ controller.

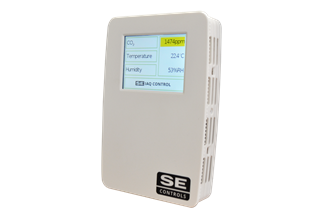

The SE IAQ controller provides a stand-alone environmental system for the automation of window actuators to control temperature and CO2 within room spaces such as offices and classrooms. Incremental opening of the window is facilitated via connection to the NV LogiQ PSU controller.
