Automated Window Actuators

Product Descriptions

Chain, linear and folding arm type actuators are utilised to automate inclined and vertical vents for both smoke and environmental purposes. If they form part of a life safety smoke and heat exhaust ventilation solution (SHEV) they must comply to EN12101-2 : 2003 with a Declaration of Performance (DoP) being provided to prove compliance.

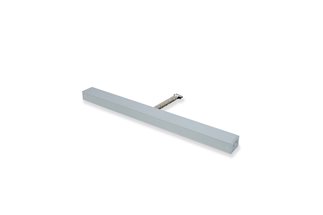

SECO N 24 25 Single & Twin Chain Actuator

The SECO N 24 25 is a slim chain drive designed to automate vertical windows for environmental ventilation. It has a 250N force up to 350mm stroke and is available in a single or twin options.

The actuator is programmable to control the opening stroke and speed and has inbuilt monitoring to prove its operation frequency aligned to it’s 15,000 cycle warranty.

With a 4000N clamping force it is designed to operate windows to PAS 24 security requirements once tested with the window system being utilised.




SECO Ni 24 40 Single & Twin Chain Actuator

The SECO Ni 24 40 chain actuator is designed to automate vertical windows for both smoke and environmental ventilation solutions in both single and twin options. The actuator is programmable to control the opening stroke (0-900mm) and speed and has inbuilt monitoring to prove its operation frequency aligned to it’s 15,000 cycle warranty.

With a 4000N clamping force it is designed to operate windows to PAS 24 security requirements once tested with the window system being utilised.





SECO Ni Folding Arm Actuator

The Folding Arm Actuator has been designed to automate podium and top of stair doors for smoke exhaust as part of a life safety smoke means of escape ventilation system. It is available as a roller or fixed option plus can offer security via integration of a maglock.

It is fully tested to EN12101-2 SHEV standard with several door profiles (see the Tested Solutions grid for information).

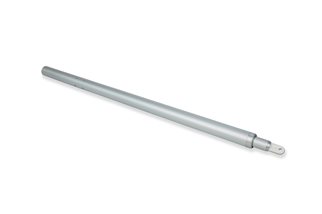

TGLA Linear Actuators

The TGLA Linear Drive is a linear spindle drive utilised for smoke exhaust ventilation of inclined smoke vents (SHEV’s). It is available in both single and tandem options to fit to the leading edge or sides of the SHEV to offer increased opening distances.

For smoke ventilation use it has been tested to EN12101-2 : 2003 with several inclined vent profiles (see the Tested Solutions grid for options).





SELA T Rack Drive

The SELA T Rack Drive is a rack and pinion linear drive utilised for smoke exhaust ventilation of inclined smoke vents (SHEV’s). It is available in both single and tandem options to fit to the leading edge or sides of the SHEV to offer increased opening distances.

For smoke ventilation use it has been tested to EN12101-2 : 2003 with several inclined vent profiles (see the Tested Solutions grid for options).
